Locking Technology

• Contactless electric switching
• Maintenance-free electronic keys (no battery or contact) in key tag look
• Control- and reading unit are also available as one integrated device for installation into a standard flush-mounted box (to be used in the safe area)
• Intervention or destruction of the reading unit does not result in a switching signal of the control unit (i.e. a door will not be opened)
• Length of connection wire between reading unit and control unit is 2.5 m, the wire can be shortened according to individual requirements
• Easy to find and to operate (blinking LED) also at darkness
• Key-code with more than 4.3 billion possibilities ensures a maximum of security
• Master-key as identification key for individual customization of the system and for (de-) registering of keys
• If required, one master-key can control multiple TRANSSYS 2000 systems (suitable i.e. within one building or property)
• All parameters are permanently saved and will not be lost in case of a possible electrical power outage
• Hierarchical locking system: One electronic key can be registered at different locks (i.e. entrance, alarm system, garage, PC-access, garden irrigation) and handle different devices
• All-purpose switch (potential-free relay contact as output, circuit time adjustable as 1-25 s or permanent on / off)
• Operation as relay circuit with permanent on / off permits i.e. to switch electric consumer or to arm alarm devices
• Easy installation also suitable for non-professionals, no dangerous line voltage

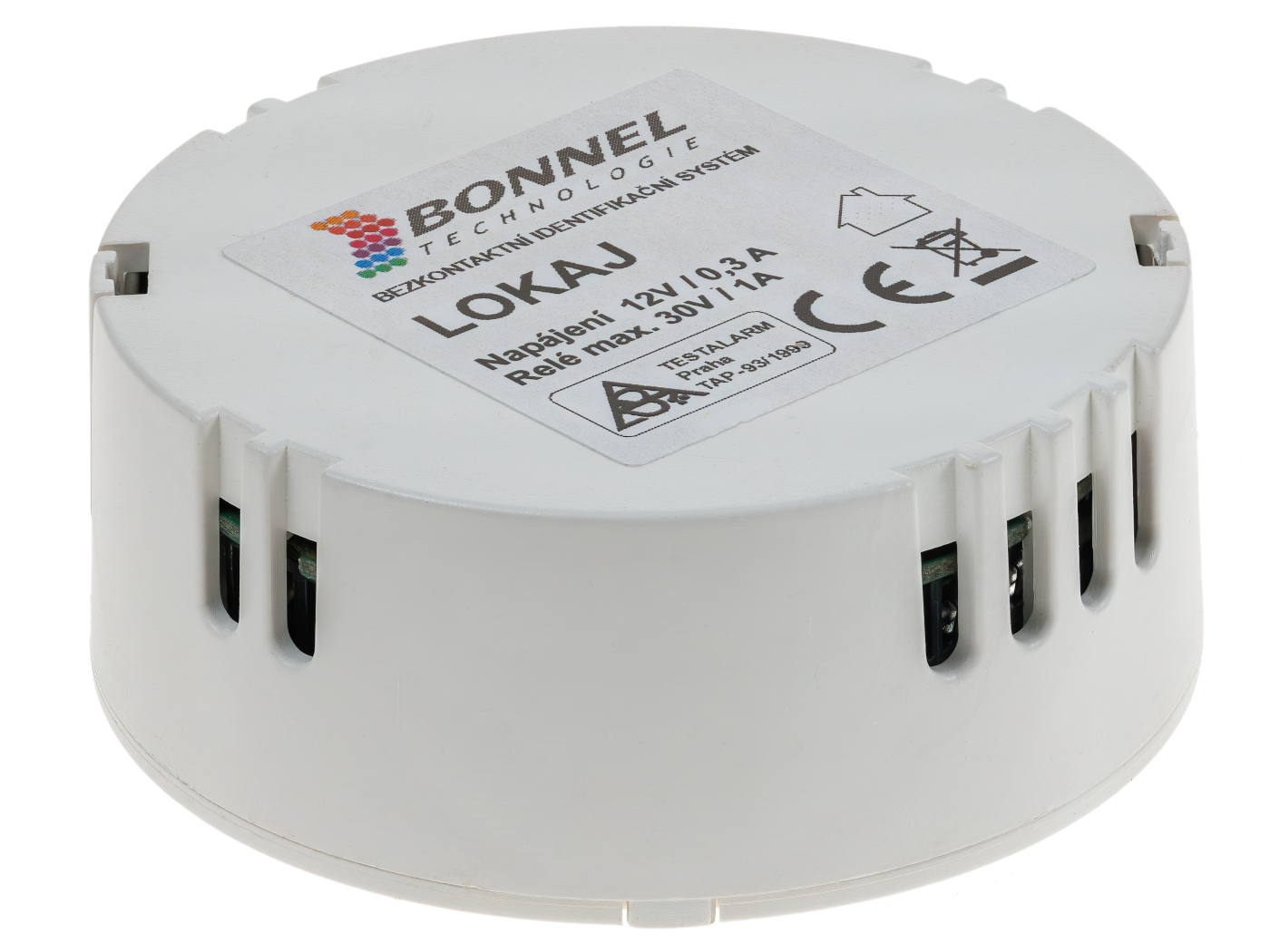

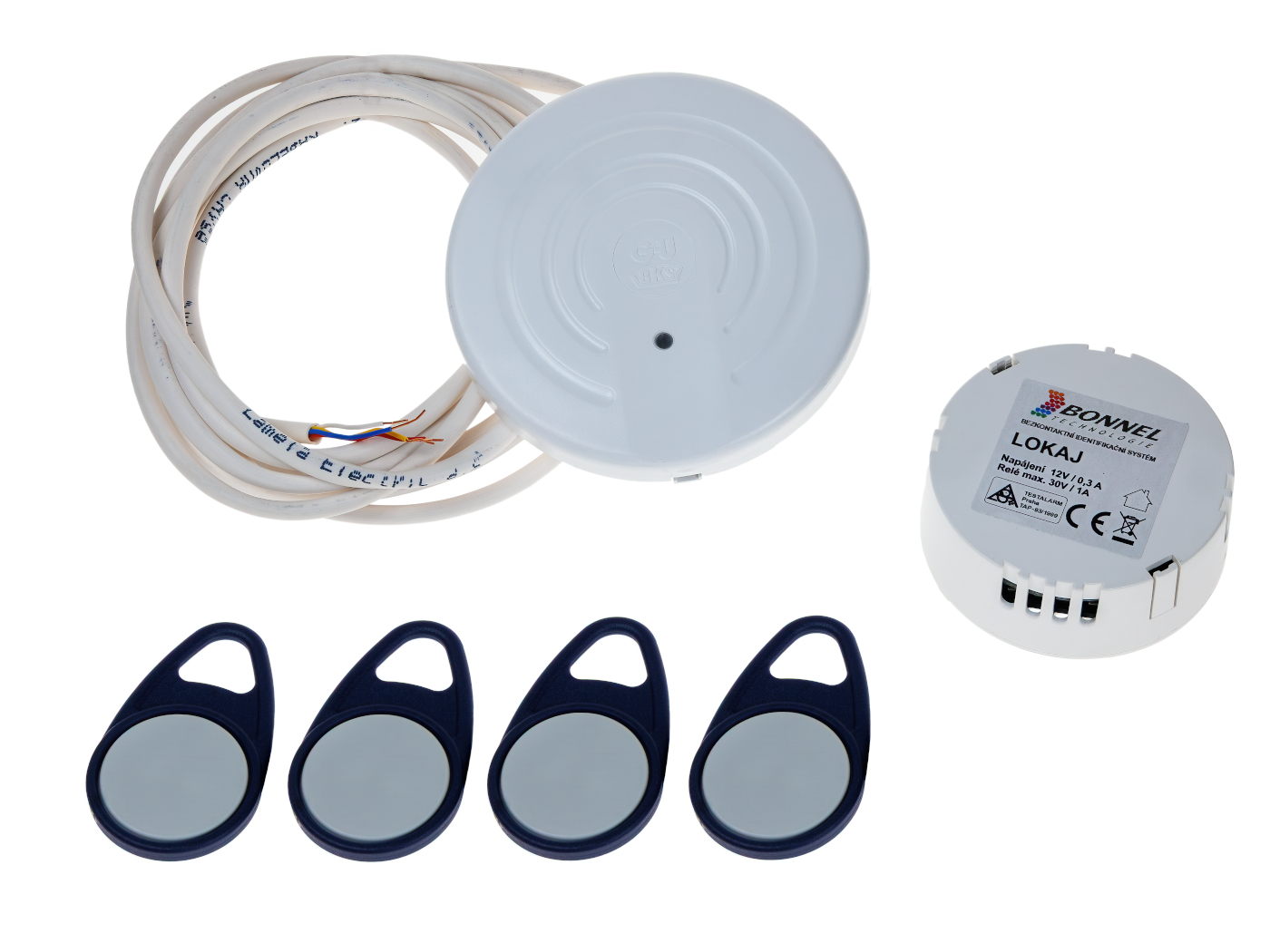

• 1 control unit (interior installation, i.e. in a flush-mounted box)

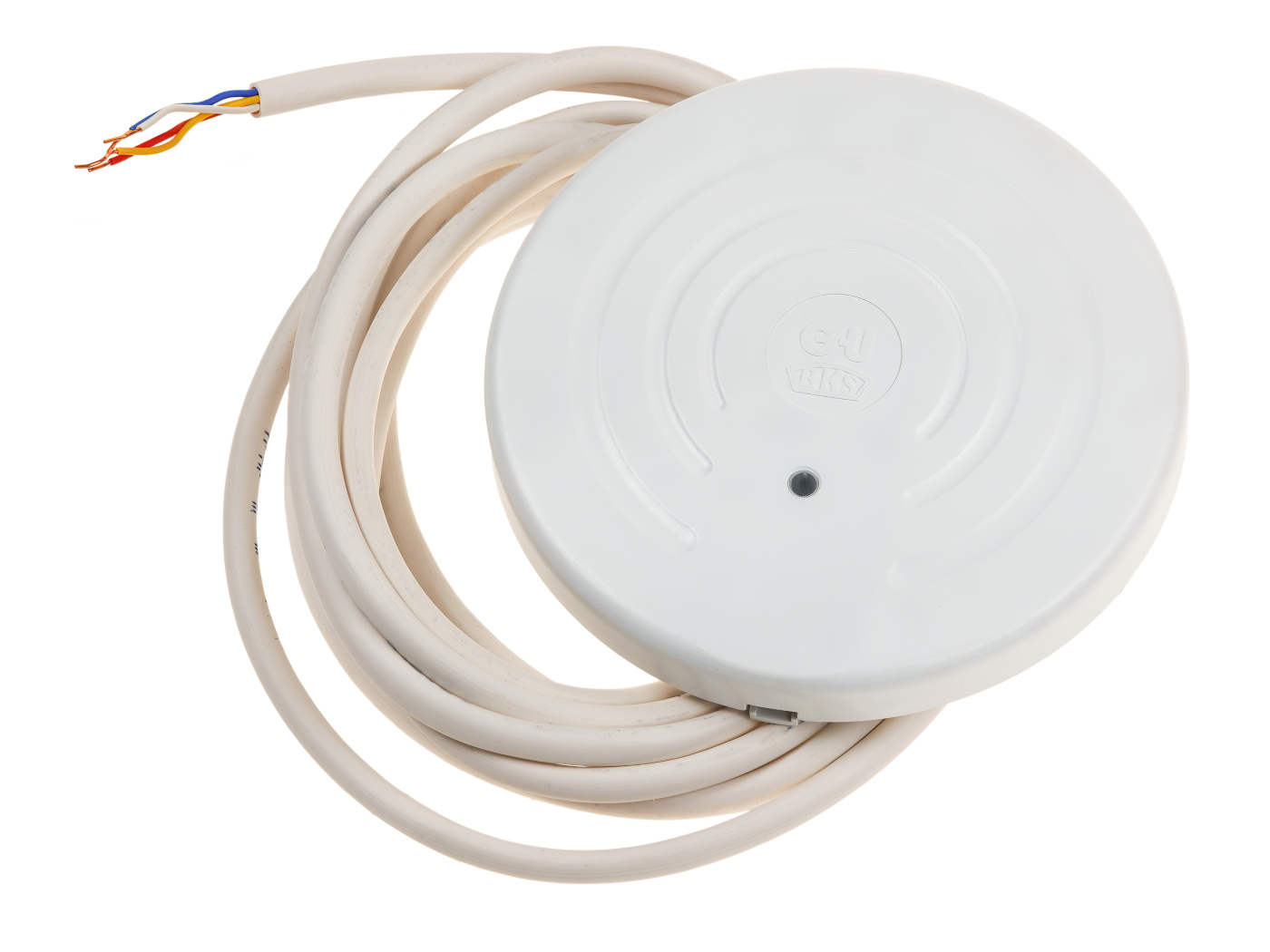

• 1 reading unit (exterior installation, well accessible)

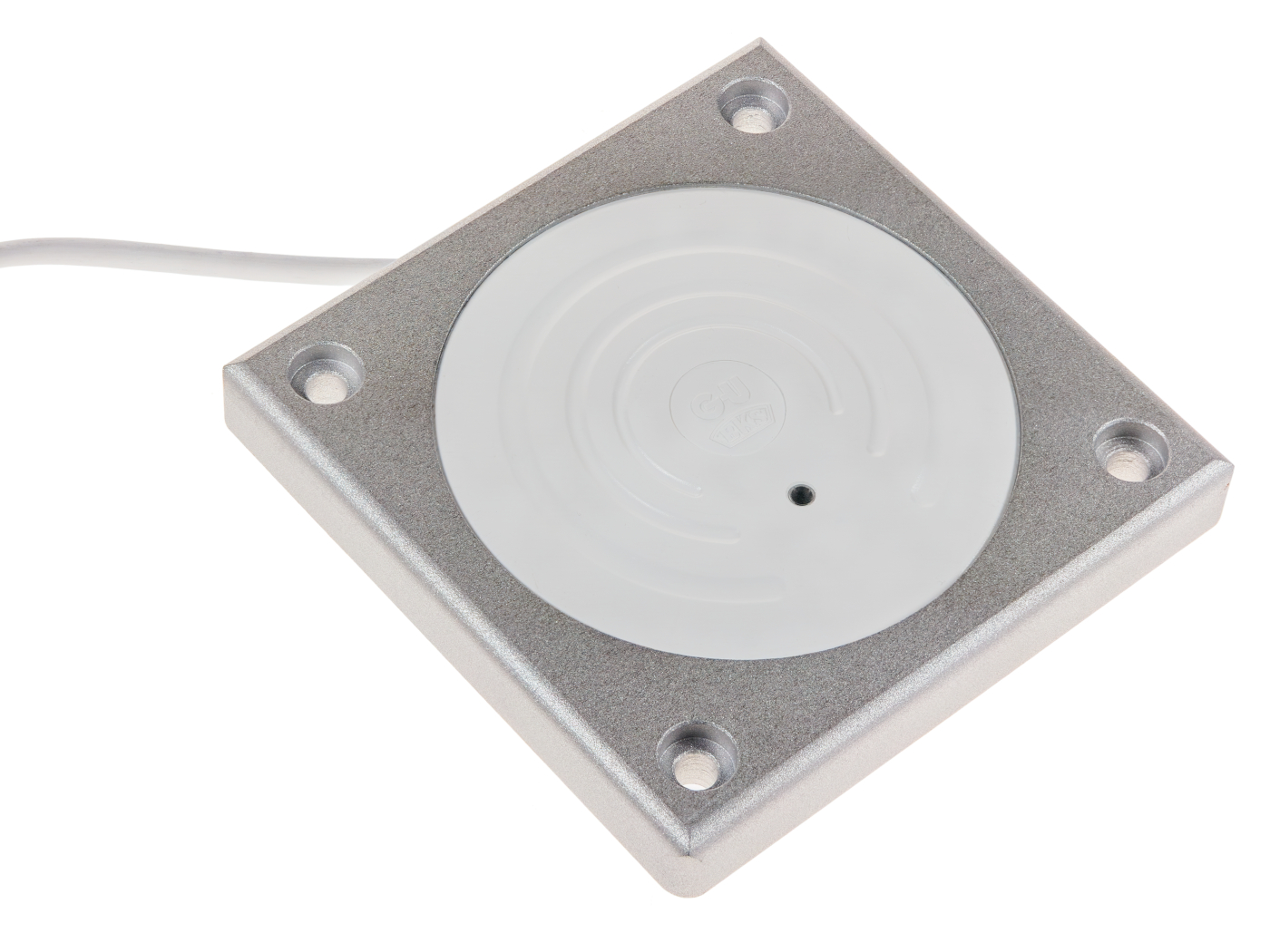

• 1 fastening-parts kit
• 1 master-key (in key tag look, red, for (de-) registering the keys)
• 4 electronic keys (in key tag look)


Yes, certainly.

Yes. TRANSSYS can be used for the entrance door and for doors of shared rooms, such as a laundry or a lift. Upon customer´s wish, all the doors can be unlocked with one key.

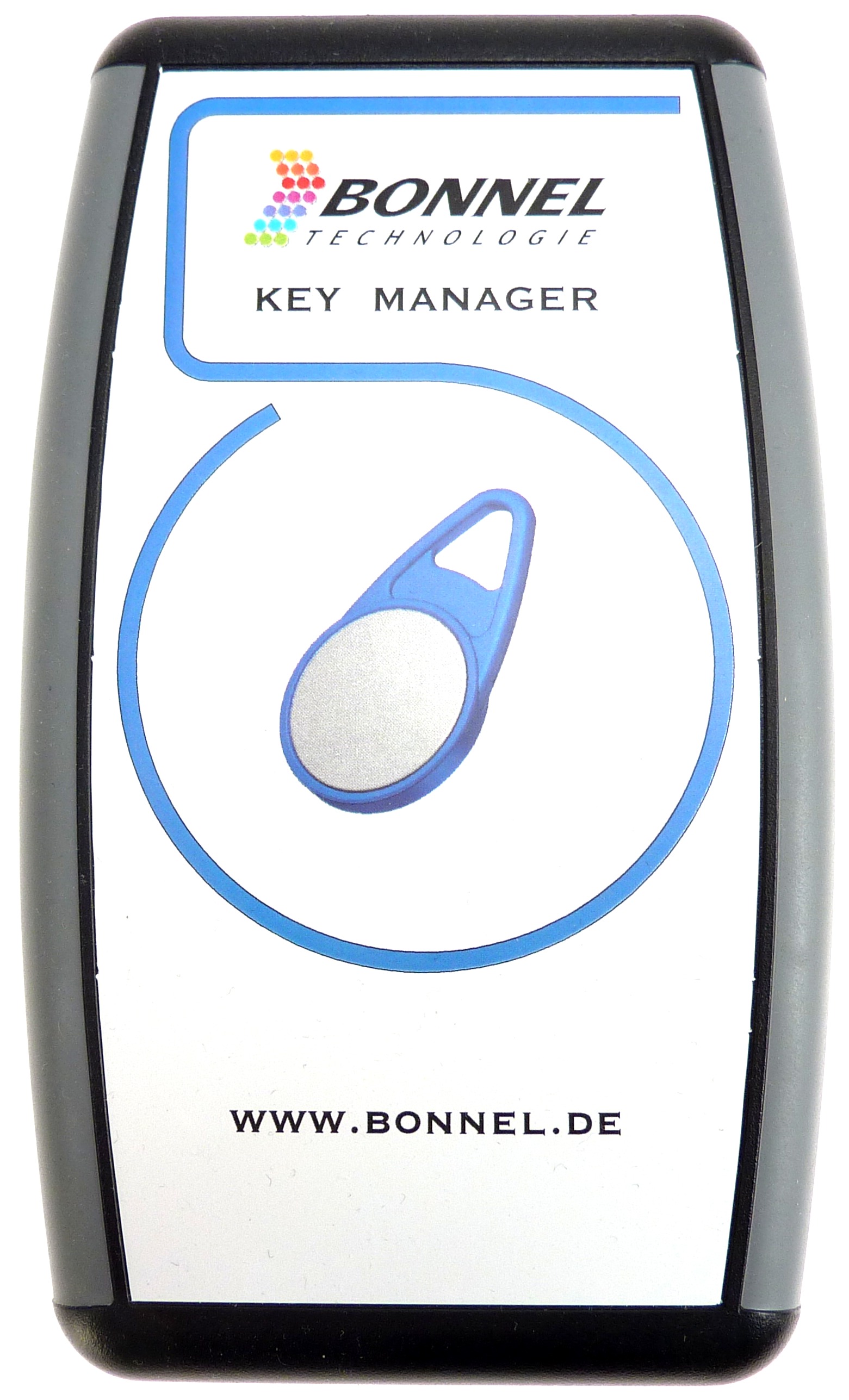

If you do not have a Key Man

A new key fob can be added whenever you wish to until you reach the limit number of your TRANSSYS transponder system.

• If the control LED is not blinking/signalling red on the reading unit, please check the power supply. This LED blinking signal can be switched off in the unit configuration.

• If the reading unit does not respond to a key fob, please check the conductivity between the control unit and the reading unit.

• If the reading unit responds/ registers the key fob with a quickly blinking LED signal, the key fob is defect or it has not been registered yet.

• If the reading unit registers the key fob correctly but it does not unlock the door, please check the power supply to the electrical lock, respectively a cable between the control unit and and the latch.

• If the reading unit registers the key fob correctly and the power supply is fine but it does not unlock the door, please send your control unit to our service team (your seller) for inspection.

Contact our service team at: servicedesk@bonnel.cz .

 It is necessary to allow opening the door from inside by an emergency key or a handle in a case of fire when using this system.
