Sequetrol IoT rain

• Inclusion of level measurement, tap water refill control, and irrigation control in one connected device

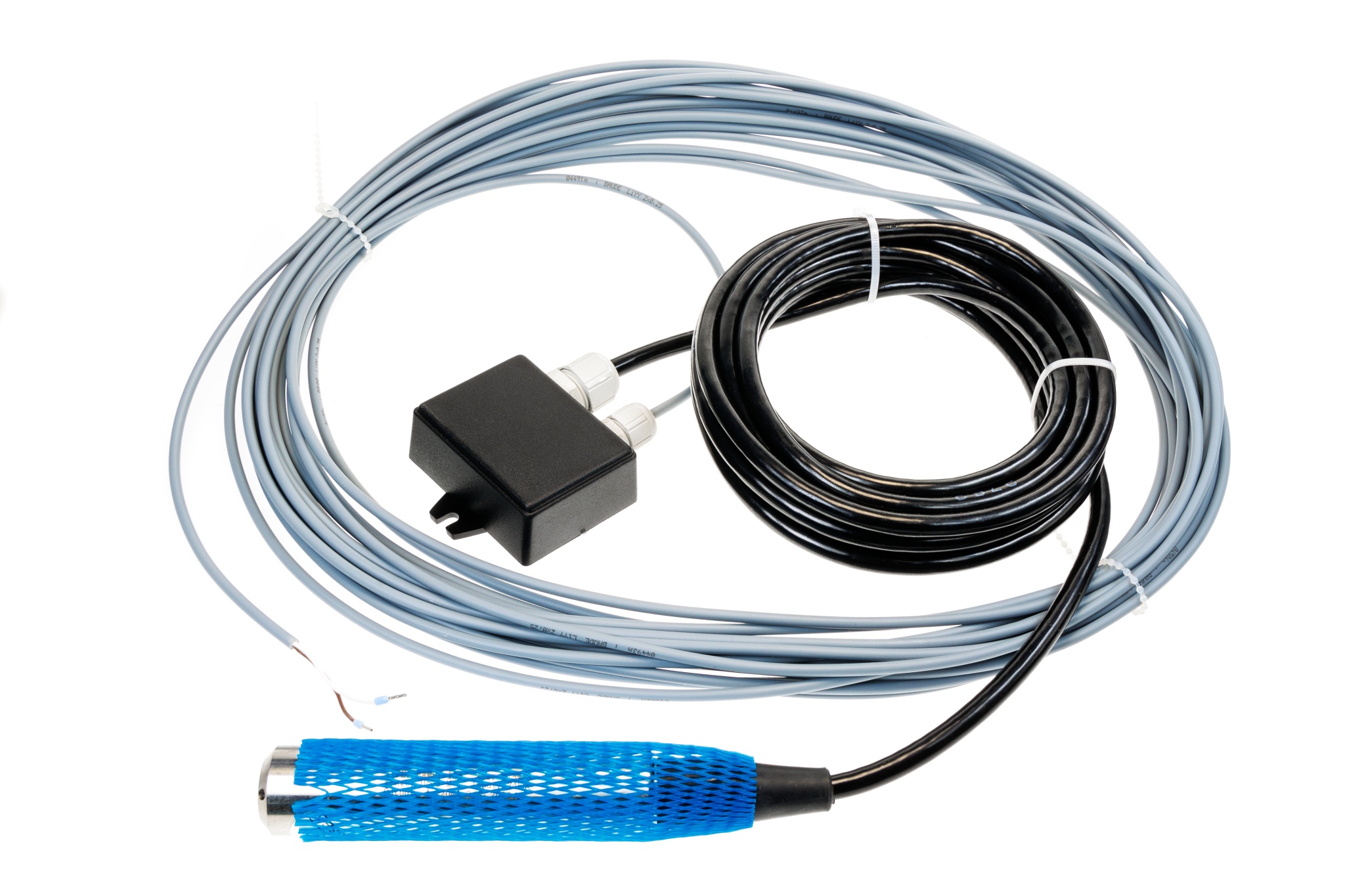

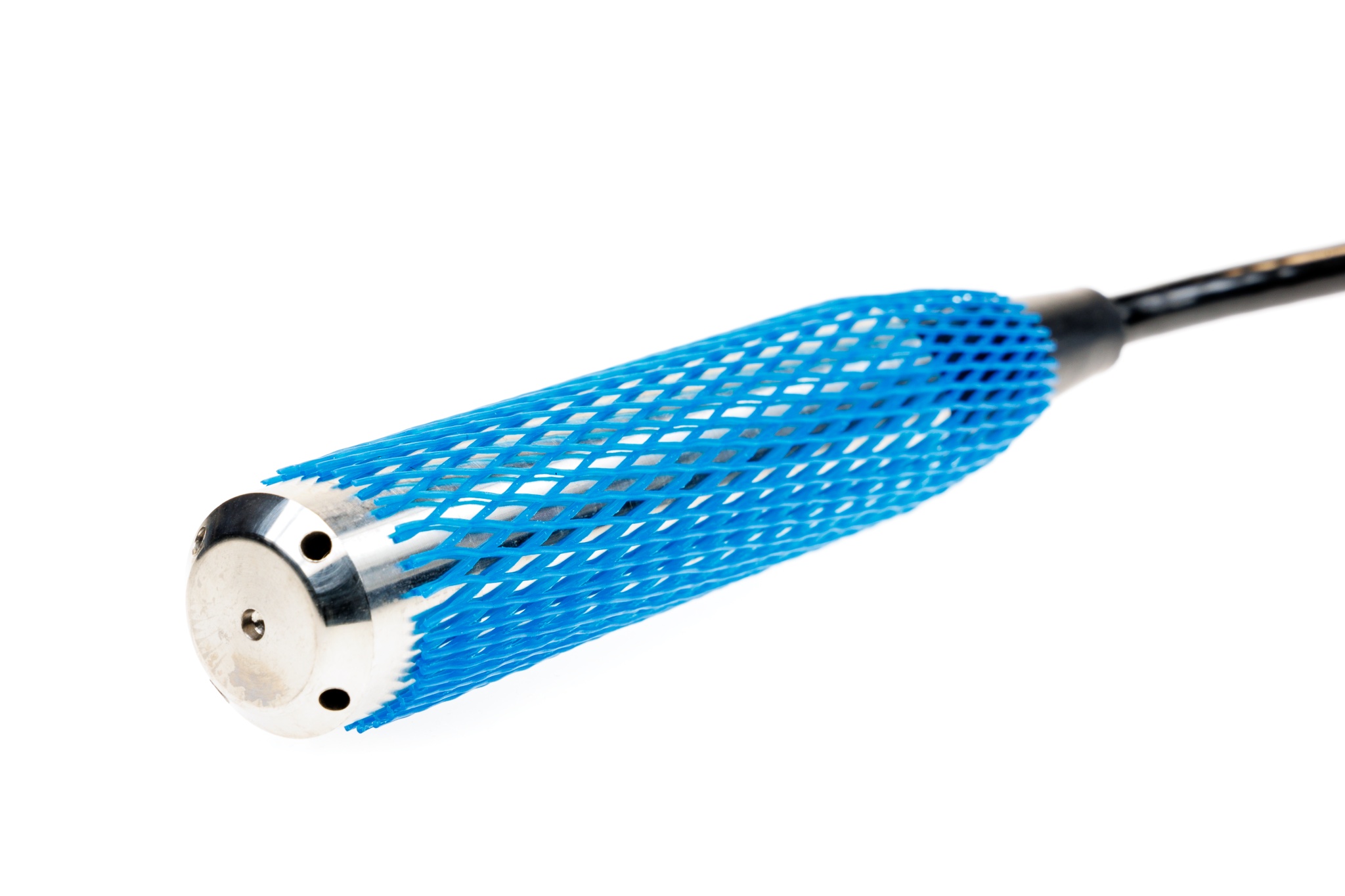

• Knowledge of water amount and water savings thanks to an analog level measurement probe (4-20mA pressure probe)
• Automatic tap water refill (monitored via level probe, time and overfill float switch) guarantees continuous water supply

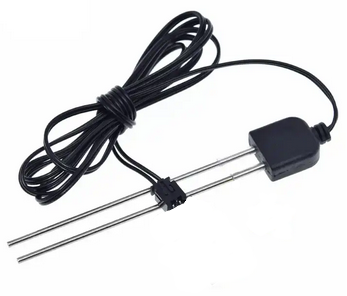

• Control the irrigation based on a soil moisture sensor
• Consumers / pumps monitored by current consumption
• Peace of mind due to alarm e-mails and possibility to operate controller from “everywhere” (given internet connection and connection to Aquavisor^® telemetry is provided)

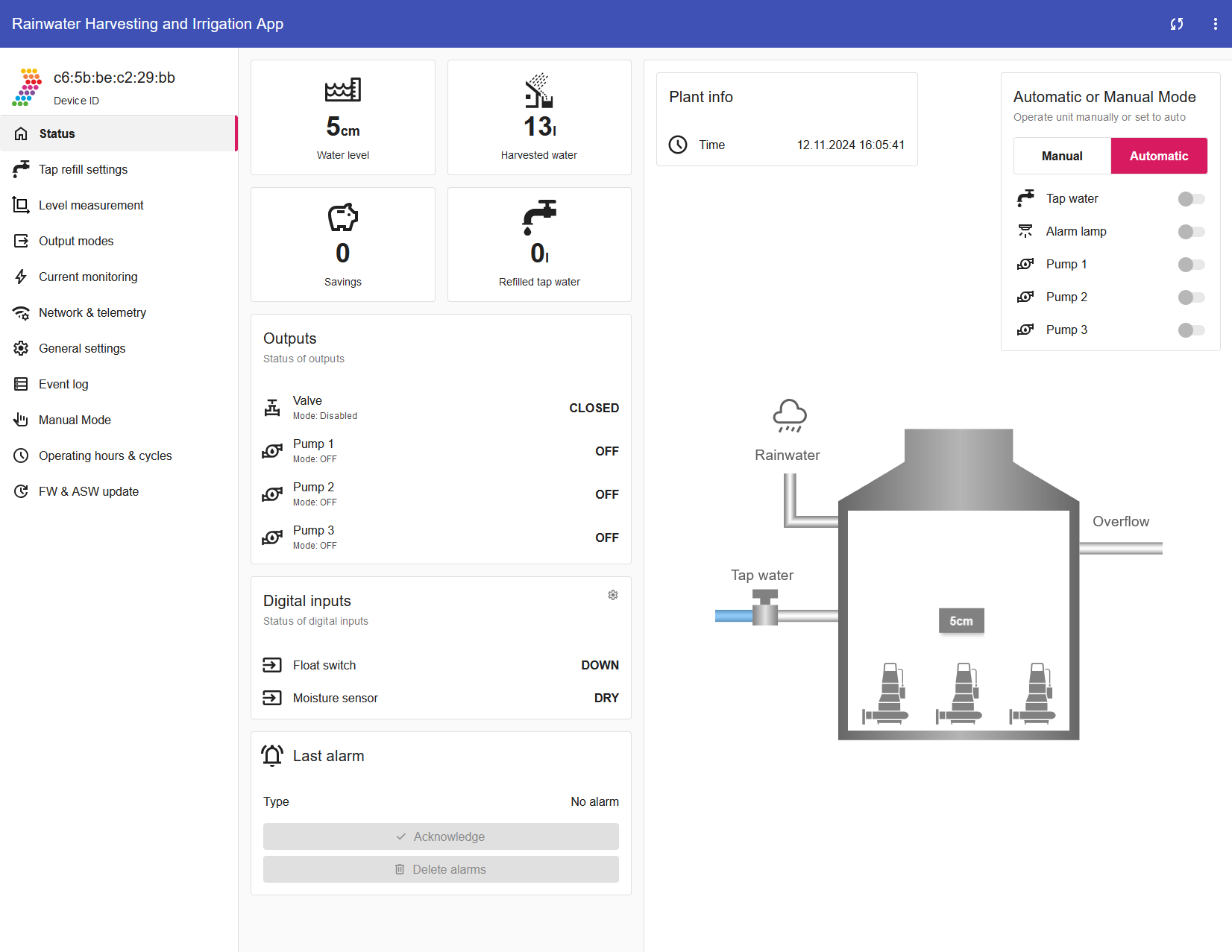

• Self-explaining user interface via browser and Wi-Fi (no internet connection required controller creates “hotspot”)

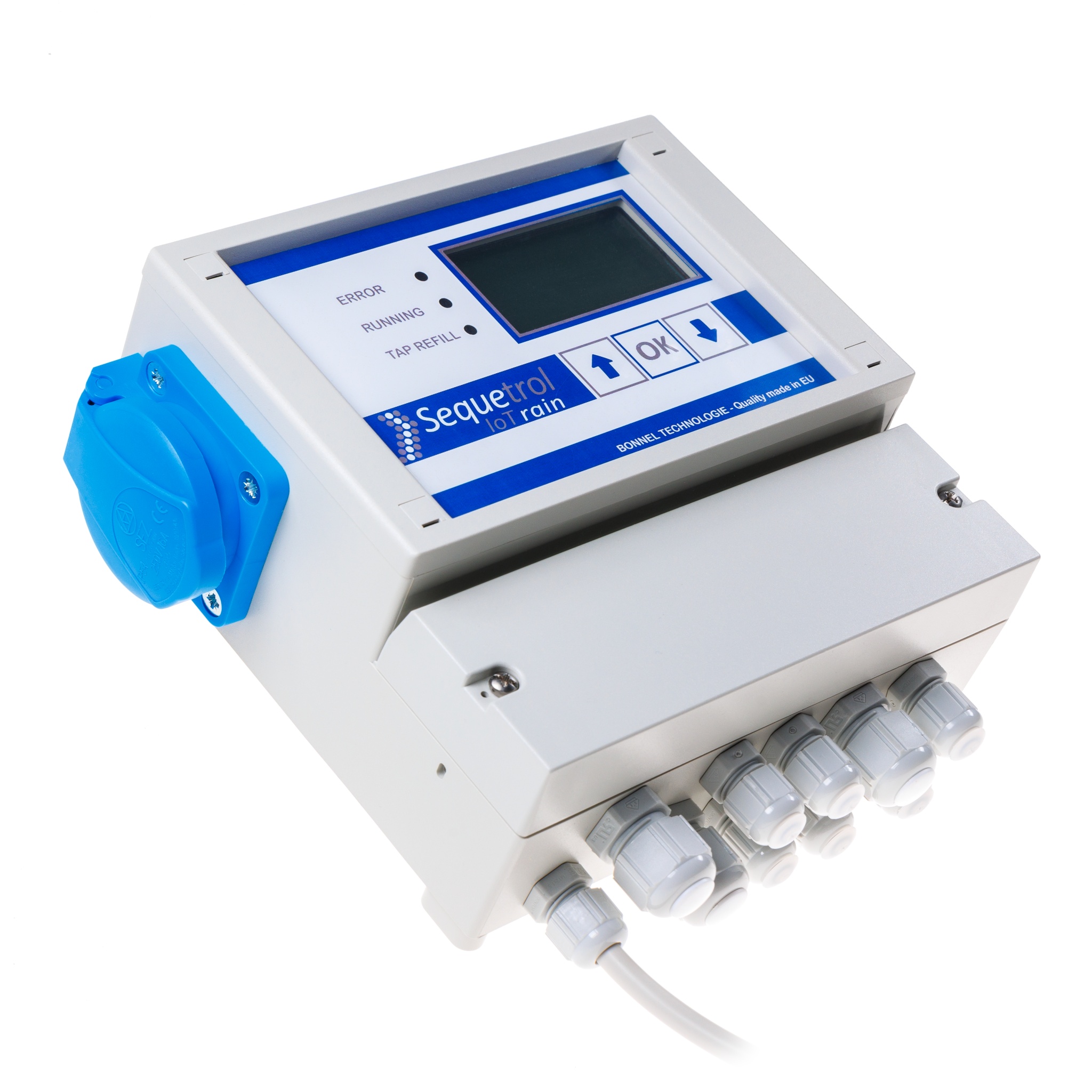

The Sequetrol^® IoT rain is a Control Unit for rainwater harvesting, which can be operated either conventionally via LCD and buttons, or via its web pages (locally or remotely).

The Sequetrol^® IoT rain

• Measures the level in the tank in cm or liter
• Controls a valve for tap water refill in case there is not sufficient rainwater in the tank
• Irrigates your garden by switching up to three independent pumps based on soil moisture

Due to the Setup Wizard, connecting the accessories and configuring the unit is easy for everyone - even without a manual.

Irrigate your garden like a professional

With the Sequetrol^® IoT rain there are no restrictions to your gardening ideas.

• Up to three pumps can be scheduled and run independently
• Irrigate “scheduled” or “now for XX minutes”
• Irrigate depending on soil moisture
• Pump, when you want to get rid of too much rainwater
• Set the output to “permanently ON” to use pressure-activated pumps

Peace of mind due to sophisticated monitoring

Due to the comprehensive monitoring capacities of the Sequetrol^® IoT rain you will never have to worry:

• If tap water refill has stopped:
  • Overfill float switch (optional) as additional level monitoring
  • Max. tap water refill duration supervision
• If your plants are irrigated:
  • Mains failure alarm
  • Pump monitoring via electric current consumption
  • Soil moisture sensor
• If you have enough water in the harvesting tank:
  • Stepless level measurement
  • Automatic tap water refill

All alarms can be signalized locally (acoustic alarm, external alarm lamp as option) and/or remotely.

Yes, IoT means internet of things. The Sequetrol^® IoT rain can be connected to the internet either via its in-build Wi-Fi or via an optional 2/4G module.

When connected to the internet and to BONNEL’s Aquavisor^® telemetry cloud, you can:

• Receive an e-mail in case of any alarm
• Check online, if your soil is dry
• Remotely adjust the irrigation / pump settings

By the way: For local operation with smartphone / tablet / PC (within the Wi-Fi range), no internet connection is required. The Sequetrol^® IoT  rain creates its own Wi-Fi network—you can connect as to any other “hotspot”.
