Weldman

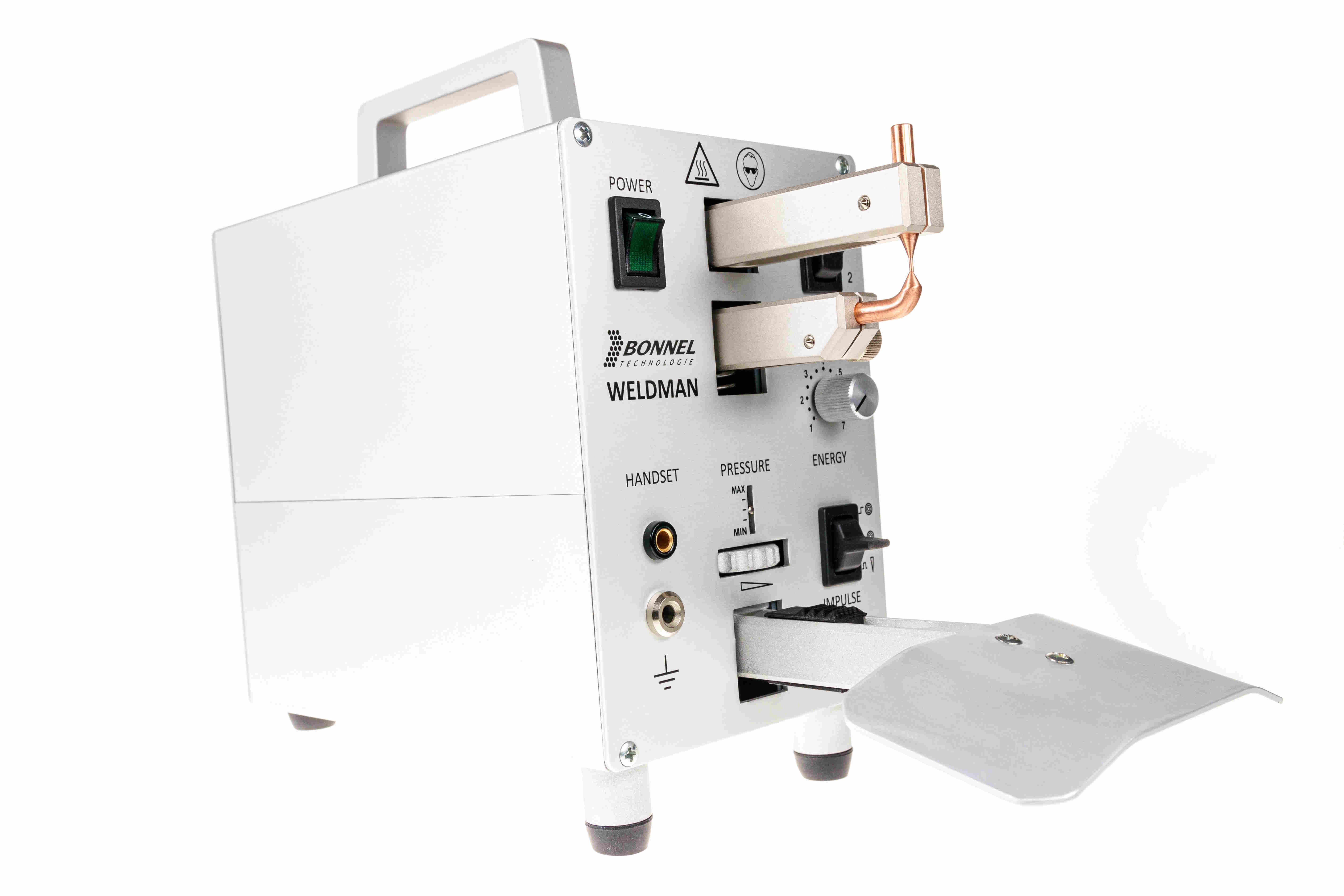

The spot welder WELDMAN is a compact and powerful unit, combining a newly designed electronic control system with precise mechanics. The gradual electrode pressure adjustment of the electronic control guarantees maximum precision and excellent results. The operation is facilitated through a minimum of well-situated switches and buttons within easy reach. A pneumatic foot switch for remote control is part of the delivery. Likewise included is a handset for soft-annealing of wires.

The functional principle is based on the heat development in the contact point of two metals due to a high current. The temperature, and thus the welding result, is better the higher the current is, the smaller the contact surface is and the lower the conductivity of the metals is.

It is especially suited for materials with relatively low conductivity, such as iron or steel. Metals of high conductivity, namely copper, aluminium or others, can hardly be processed at all.

YES. We offer electrodes with the 5 mm diameter. For older WELDMAN models we are able to supply the 4-milimeter electrodes. They are available in the following execution: flat or pointed, upper and lower. The electrodes are made from the material CuCrZr.

First of all, check and clean the surface of electrodes. Use a small file supplied as an accessory.

We recommend to send the WELDMAN to our service team for further analysis.

The WELDMAN small spot welder is designed and manufactured for single piece production or for research and laboratory use. We recommend you to inspect the surface temperature of its shoulders. At the temperatures of 60-70 degrees Celsius, you should make a break to cool the device down.

Please contact our Sales team by Email.

• 1 WELDMAN basic unit
• 1 pneumatic foot switch for remote control
• 3 spare welding electrodes (CuCrZr)
• 1 file / rasp
• 1 handset for soft annealing
• 1 spare fuse
• 1 mains cable for 230VAC
