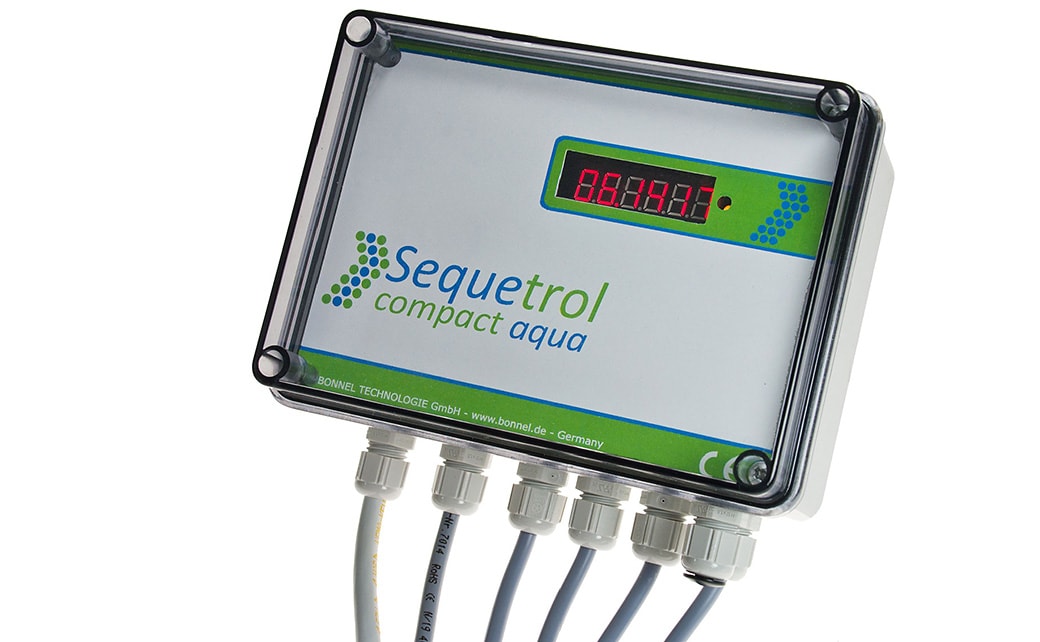

Sequetrol compact LED

• The compact Control Unit stands out thanks to its great price performance ratio
• Reliable technology proven in thousands of installations
• Create powerful programs with ease – no coding skills needed, just edit an Excel^® table
• Individually equipped (display, keypad, connectors) according to customer requirements
• Integrated operating hours counter
• Automatic release of residual pressure in the valve unit
• Updateable firmware and software
• Design of the front-panel according to customer preference

The Sequetrol^® compact has been developed as a comfortable but economically priced Control Unit.

Equipment

The Sequetrol compact LED offers features like acoustic signaling of predefined conditions, a process permanently stored in the EEPROM, and a set of batteries to ensure continuous signaling during power outage.
When the control sequence is interrupted due to mains failure, the unit will automatically resume operation with the last unfinished step instead of restarting the program.
Utilizing the three buttons on the circuit board, the sequence timing can be readjusted at the installation site, resulting in an increased flexibility in adapting the Sequetrol^® compact LED to the individual requirements of the plant.
Build-up of residual pressure in the valve unit is prevented by stopping the compressor before closing the valves. Timing is individually adjustable for each program step (0 - 14s).

Connections

• A digital input is available to connect a float-switch or another sensor.
• Up to 5 relay outputs for 230VAC offer a comfortable connection of solenoid valves, diaphragm compressors or other loads.

Programming

The programming process was designed to meet the requirements of practical, real-world use.

The Control Unit will be delivered ex-factory already pre-programmed according to customer requirements. Firmware updates and sequence program changes can be performed with the aid of an inexpensive programming device. This feature makes the Sequetrol^® compact LED “future-proof” and ready for possible changes of the legal situation.

No programming experience or any special software is needed.

The sequence program can be easily created or modified using a ready-made spreadsheet table (Excel^®).


Standard models are available in any quantity. Please refer to the Order Reference table for standard models. Besides the standard models, customer specific versions / configurations are available at an MOQ of 100 units per year. On request and at reasonable quantities, customer specific control units based on this control unit can be derived. For example, another casing, a different I/O configuration or similar changes, can be performed. Please please inquire according to the the Order Reference table for customer specific models.
