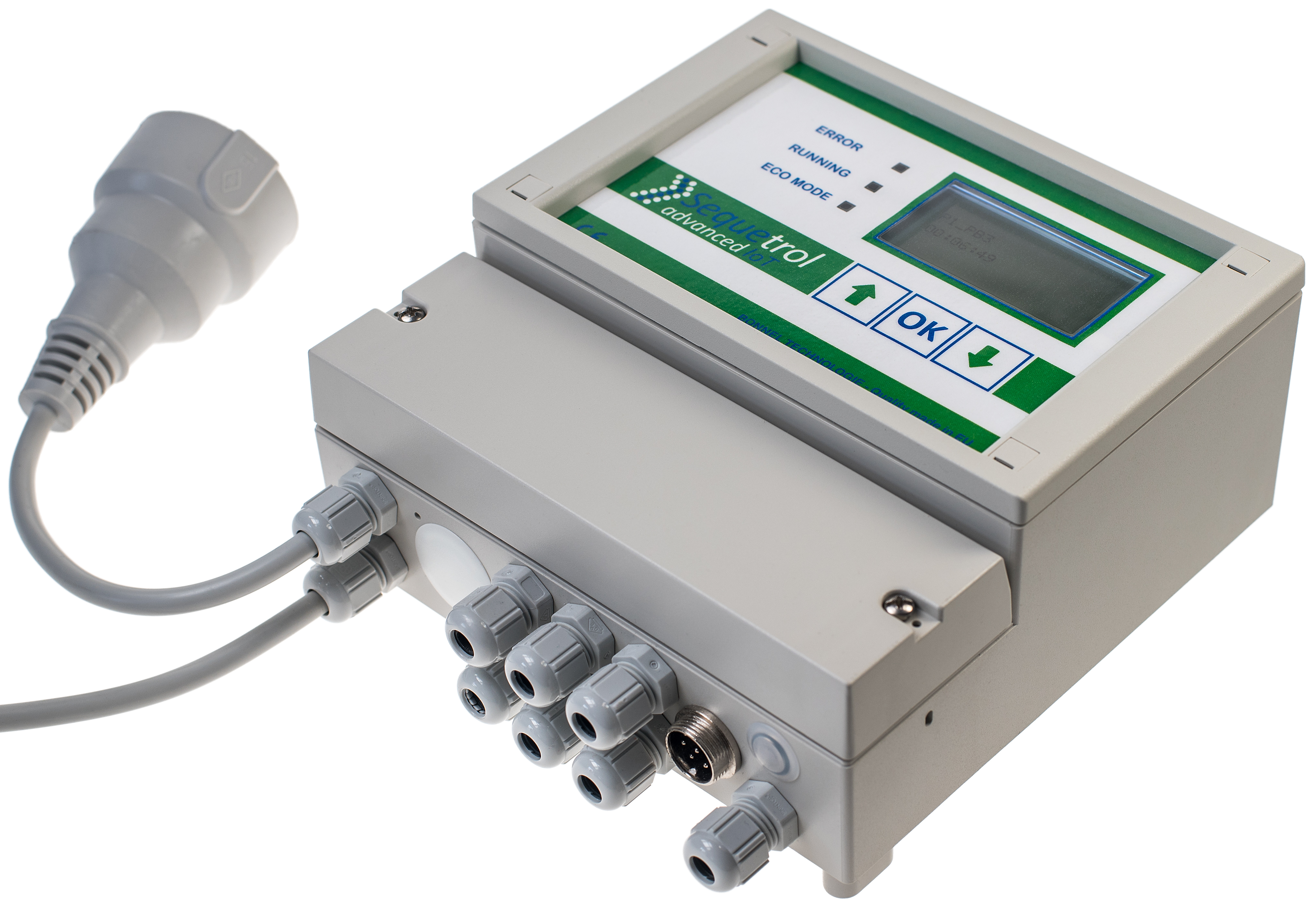

Sequetrol IoT maxi

Sequetrol IoT maxi Technical Data
Order Reference		SQ-IoT-maxi Wi-Fi	SQ-IoT-maxi Wi-Fi+2/4G
General	Valves	-	-
	Alarm Buzzer	●	●
	230V relay outputs	8 x 5A nominal	8 x 5A nominal
	Low voltage digital output	●	●
	Output for BonFlash alarm lamp / BonAlarm alarm forwarder	●	●
Inputs	Digital inputs	3+1 (one DI can work as a counter)	3+1 (one DI can work as a counter)
	Analog inputs	1 x 4-20mA	1 x 4-20mA
Pressure measurement		internal sensor 0-500mbar, 0,8m tube	internal sensor 0-500mbar, 0,8m tube
Current measurement		on request at MOQ 250pcs.	on request at MOQ 250pcs.
Connections	Relays 1-4 & 6 e.g. valves, pump	Terminals + cable glands, no cables	Terminals + cable glands, no cables
	Relay 5, e.g. blower	CEE 7/4 socket	CEE 7/4 socket
	Relay 7-8, e.g. dosing, UV	7-pole BINDER connector, see 7-pole BINDER connector	7-pole BINDER connector, see 7-pole BINDER connector
	Mains 230VAC	1.9m + CEE 7/7 plug	1.9m + CEE 7/7 plug
	DI1-4 and analogue input (4-20mA)	8-pole CANNON connector	8-pole CANNON connector
Wi-Fi		●	●
2/4G		-	●
USB interface		●	●
Equipment components		2xAA NiMH rech. Batteries	2xAA NiMH rech. Batteries

Clearwater removal via airlift
Clearwater removal via submersible pump
Output for Phosphorus removal including load-based dosing and low precipita-tion liquid level warning
Measurement of the amount of treated water

Filling via submersible pump/Filling via sludge pump
Sludge via airlift/sludge via submersible pump
CW removal via airlift/CW removal via submersible pump
Blower/Injection aerator
One-Tank SBR plant
- Clearwater removal via airlift
- Clearwater removal via submersible pump
