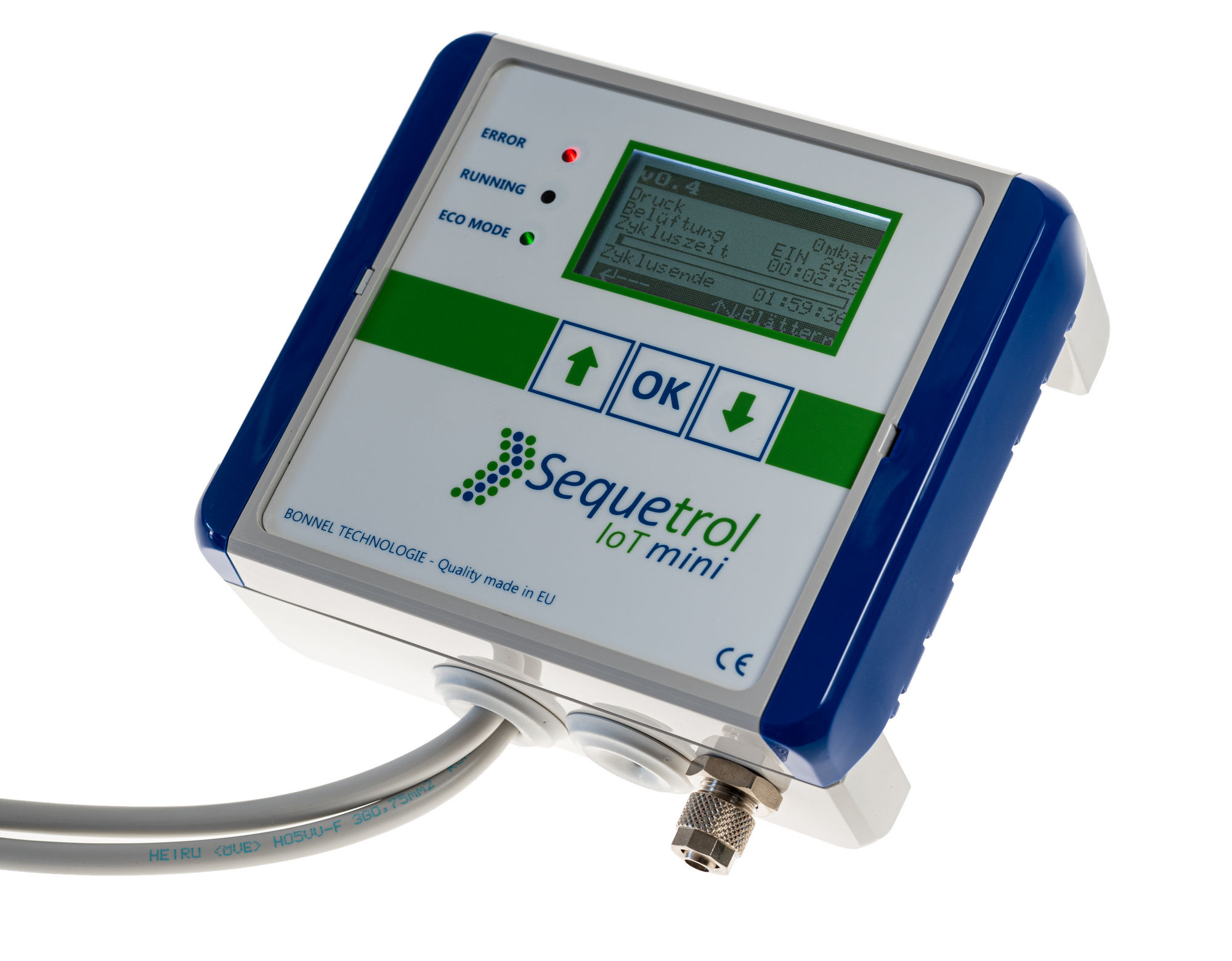

Sequetrol IoT mini

Standard models

Standard Models Sequetrol IoT mini
Order Reference		SQ-IoT-mini Wi-Fi	SQ-IoT-mini Wi-Fi+2/4G *
General	Valves	-	-
	Alarm Buzzer	●	●
	230V relay outputs	4 (1x16A+3x5A nominal)	4 (1x16A+3x5A nominal)
	Low voltage digital output	●	●
	Output for BonFlash alarm lamp / BonAlarm alarm forwarder	●	●
Inputs	Digital inputs	2	2
	Analog inputs	-	-
Pressure measurement		internal sensor 0-500mbar, 0,8m tube	internal sensor 0-500mbar, 0,8m tube
Current measurement		●	●
Connections	Relays 1-4 e.g. valves, pump	Terminals + cable glands, no cables	Terminals + cable glands, no cables
	Mains 230VAC	1m + CEE 7/7 plug	1m + CEE 7/7 plug
Wi-Fi		●	●
2/4G		-	● *)
UBS interface		●	●
Equipment components		2xAA NiMH rech. Batteries	2xAA NiMH rech. Batteries
			* 2/4G + Wi-Fi can run only under certain conditions; this solution is available only on individual request

Standard web pages, menu, and processes

Currently there are standard processes for Pump SBR, MBBR and One-Tank SBR available for the Sequetrol^® IoT mini. Please refer to the Sequetrol^® IoT midi.
