BonRelay auxiliary relay switch
BonRelay was developed to connect electrical devices with high electrical power consumption and/or 3-phase connection with BONNEL’s Control Units for Wastewater Treatment systems.
Details of BonRelay

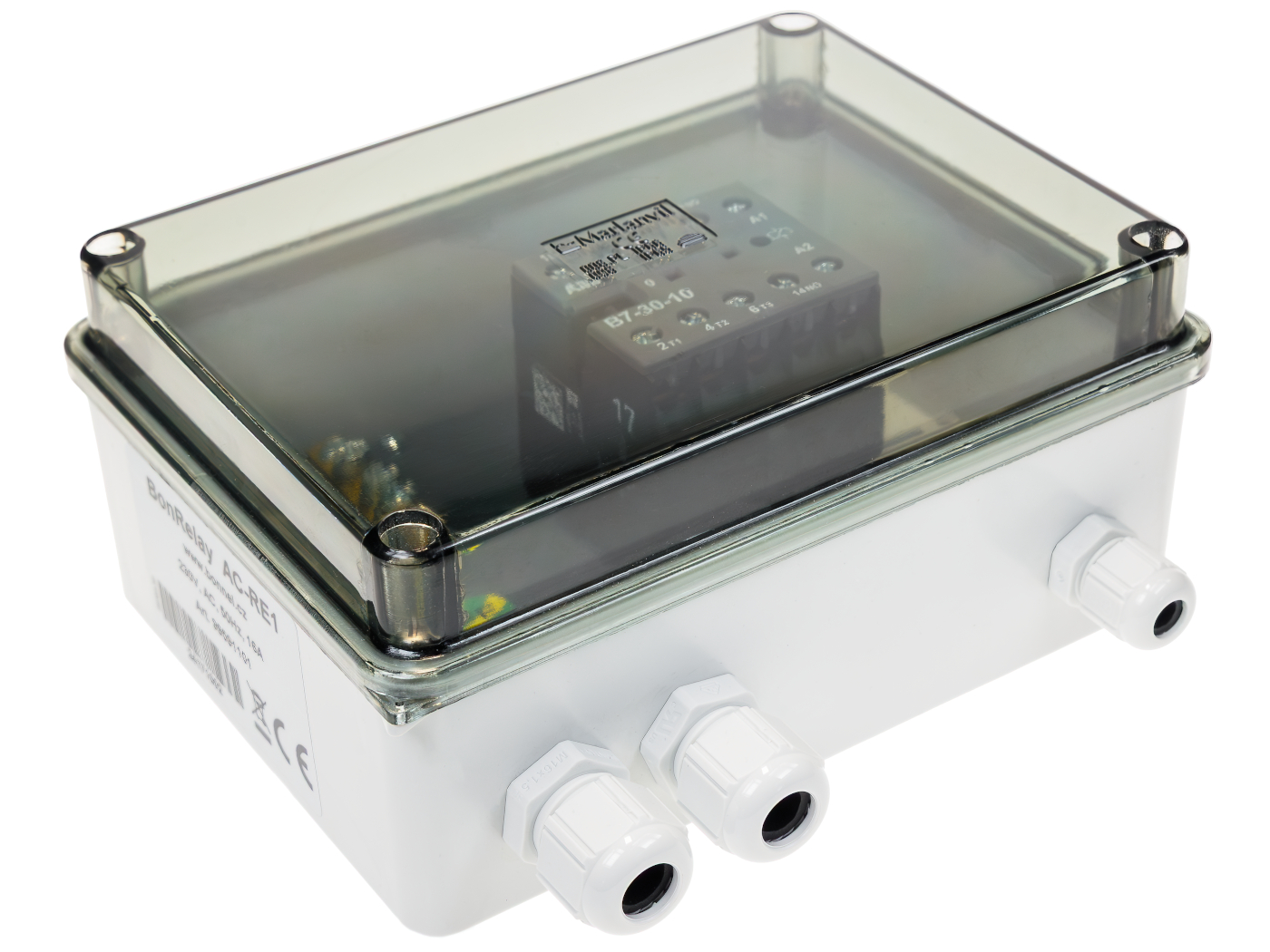

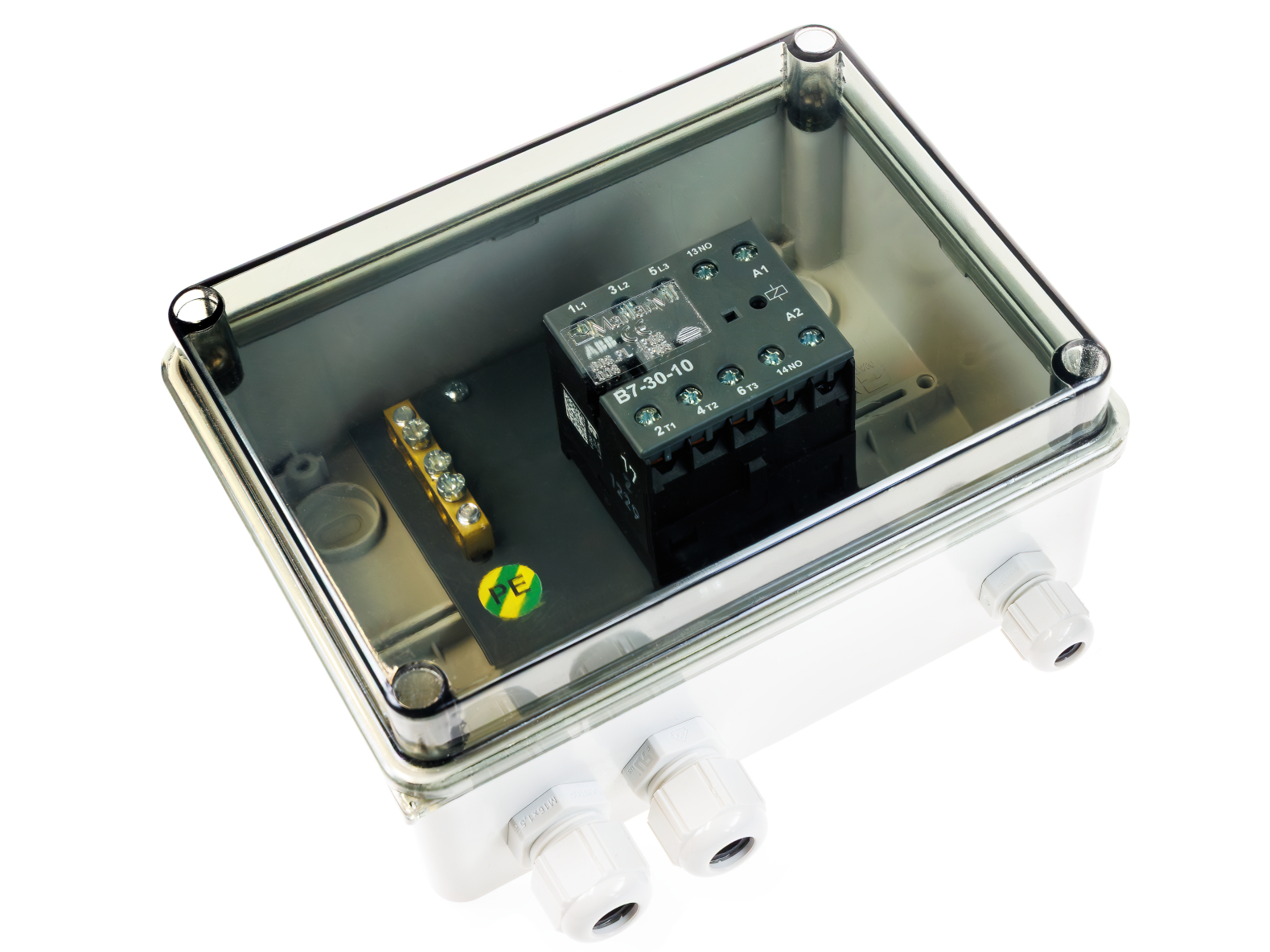

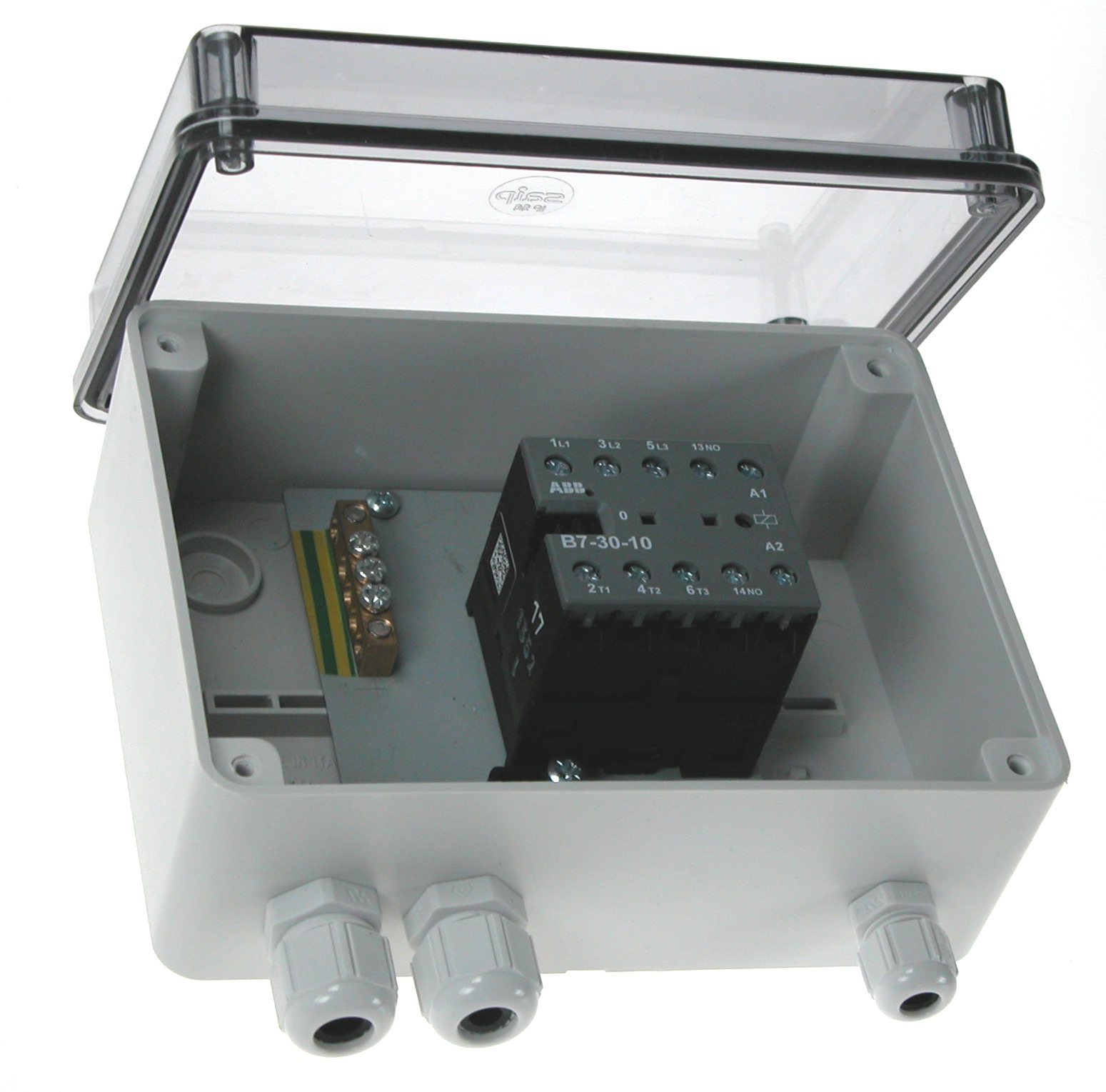

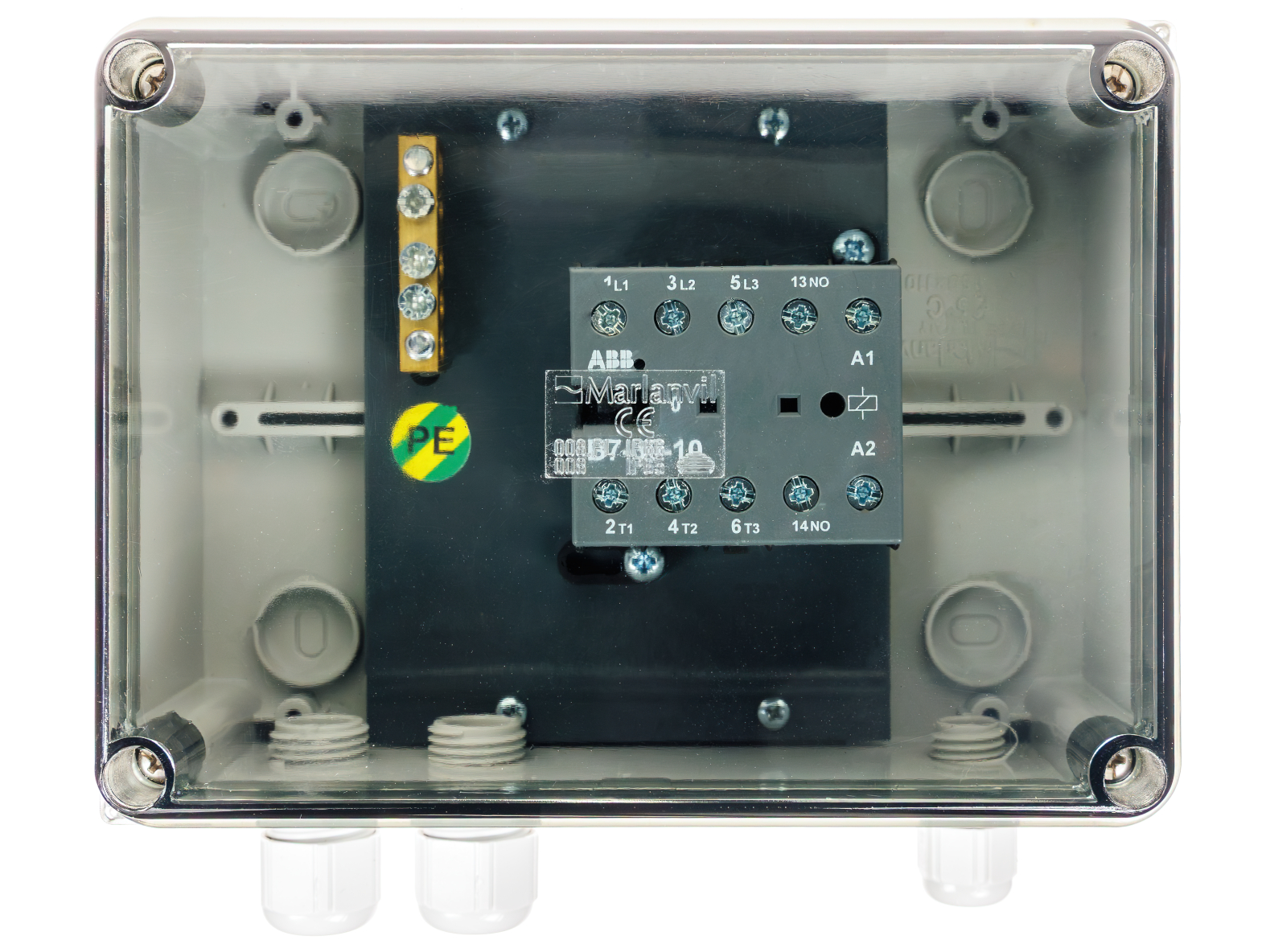

The Relay enables the use of big side channel blowers or submersible pumps or similar equipment with the Control Unit and ensures a high lifetime of the relays of the Control Unit. The contactor relay (=auxiliary relay switch) is protected by a stable housing with IP 54 and screw cable glands and can thus be easily connected to the Control Unit.
Benefits and Features of BonRelay
- Delivery with a stable housing with prepared cable grommets and clamps.
- Compatible with all BONNEL and other Control Units for small Wastewater Treatment systems.
- Controlled by the 230V output (relay) of the Control Unit, Pumps/blowers up to 5,5 kW.
- Power consumption can be controlled
- IP54 protection – outdoor installation is possible
Technical Data BonRelay
| Attribute | Values |
|---|---|
| Dimensions (l x w x h) | 160 x 120 x 80mm; 0.46kg |
| Contactor relay | 3-phase relay, from brand suppliers (e.g. ABB) |
| Switching power | Controls up to 5.5 kW (3-phase) or 2.2 kW (1-phase) |
| Ie | 12A @ AC-3 |
| Protection classification | IP 54 |
| Coil relay | 220-240VAC; 40-50Hz |
