Aquavisor cloud-based Telemetry
Cloud-based or Server-based plant management including a remote monitoring and a remote-control system.
Aquavisor server-based telemetry Features
- Plant monitoring via 2G, 2/3/4G or LTE Cat M1/NB IoT ((LoRa®/Sigfox® on request)
- Full remote control
- Access via web browser
- Scalable from 1 - ∞ plants
- Error notification via e-mail
- Different access levels to the plant data
Benefits of Aquavisor server-based telemetry system
- Clear-text error messages show you in advance what you can expect on-site
- Remote control allows you to solve problems without leaving your office
- Optimize the service trips by planning with digital maps
- Digital service reports enable automatic invoicing
Which basic functions does the Aquavisor server-based telemetry provide?
Remote monitoring

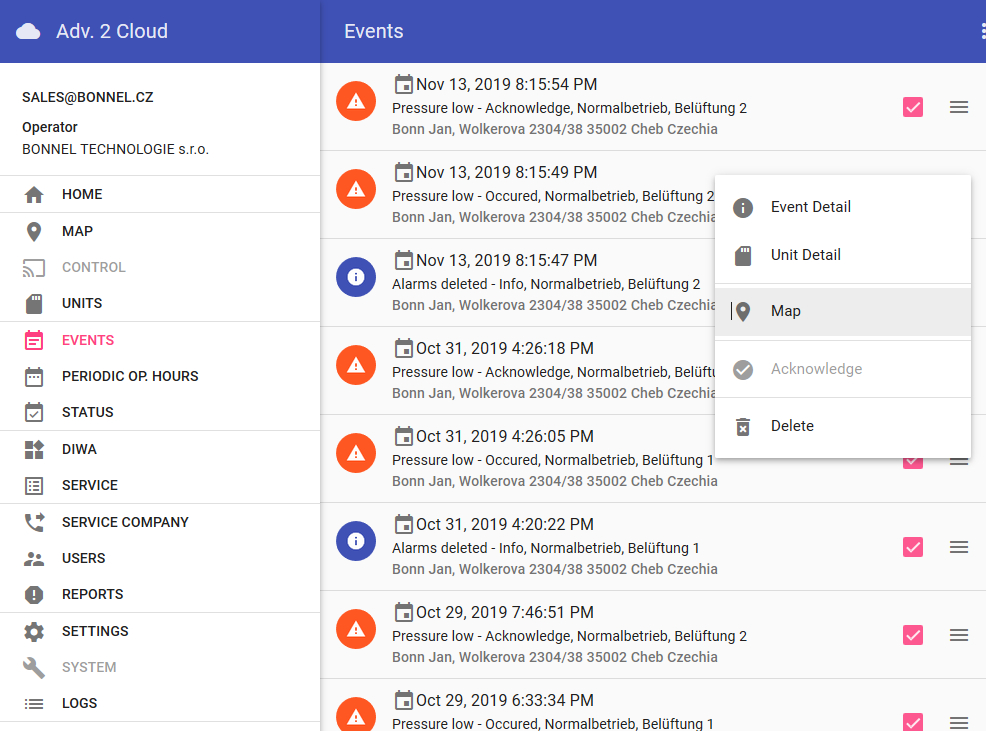

Plants are monitored remotely via 2G net-works. On request, 4G and LoRa®/Sigfox® are available, as well. Alarms and events can be forwarded by mail to the service company and/or plant owner.
Data storage
All data will be stored in SQL databases on a server. This can be either your server, a BONNEL server or cloud servers. Stored data contains alarms and events, as well as all plant data (e.g. address, GPS coordinates), customer contact data and service company data.
Data access

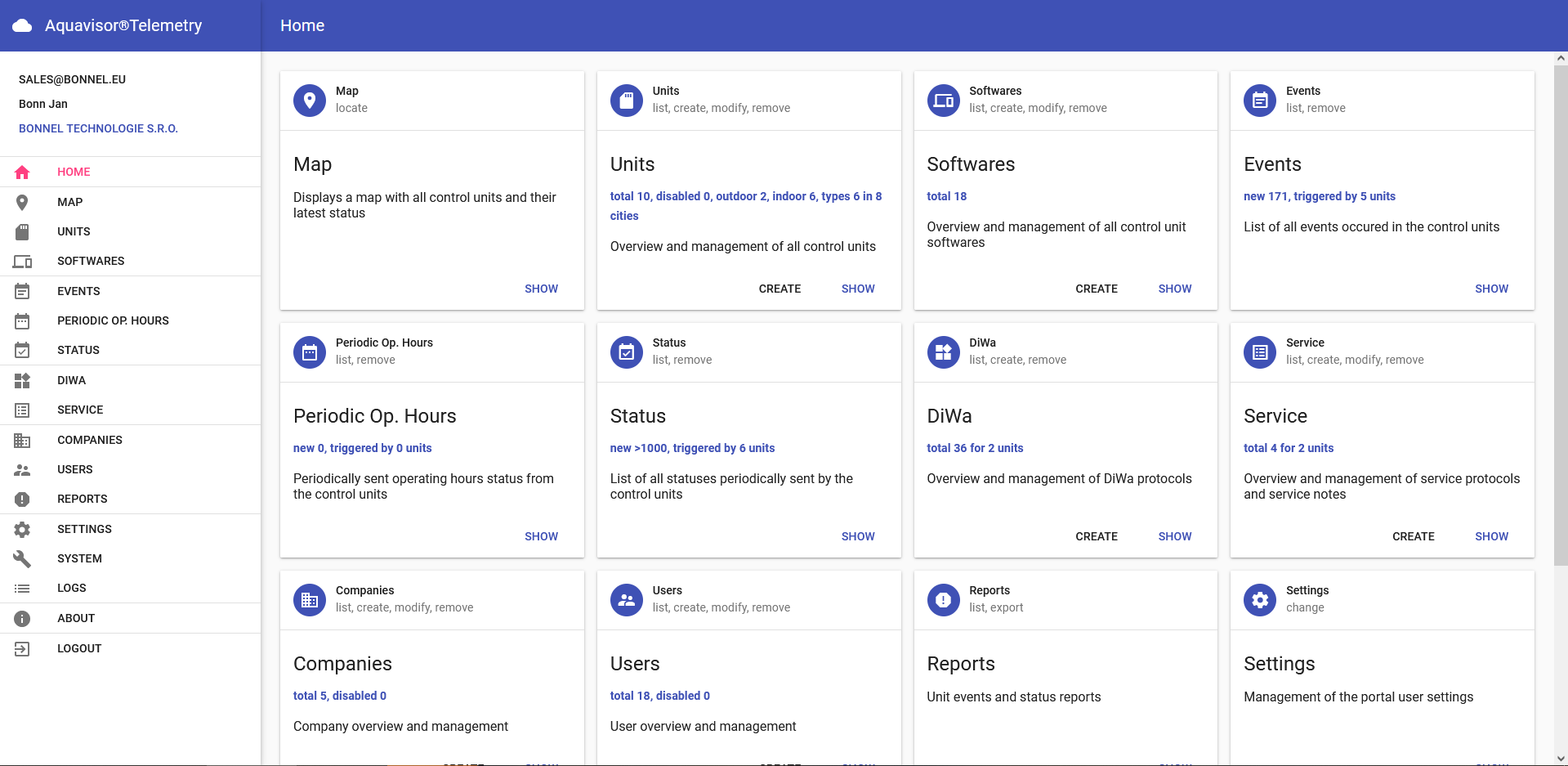

You can view and modify the data via the Aquavisor® webpages, that you can access with any browser from your PC, tablet, or mobile phone. Different user levels for the plant owner, the service company and the portal owner are available.
Service reports
Your service reports can be stored into the database as PDF files. Like this, your service history remains transparent, and you can easily review it.
Remote control
The plant can be fully remote-controlled. You can change all parameters and acknowledge alarms. Perform manual operation and even monitor the pressure or current values during these tests.
Firmware and software updates
Firmware and software updates can be performed remotely, either on particular plants or across all plants. this ensures that all Control Units are up to date.
Is the Aquavisor server-based telemetry customizable?
Yes, Aquavisor® is a scalable telemetry platform that can be adapted to your particular requirements and IT infrastructure.
Which functions can be added on request?
Extended Service Reporting
On request, digital service reports can be added. The reports are designed for your fast and simple completion on-site using prefilled fields, combo-boxes and similar. We can tailor the design and scope of the report to your individual needs.
Connection to your ERP/CRM/accounting system
An interface to your ERP can be created to synchronize data between the Aquavisor® telemetry database and your ERP system. This empowers you to transfer various data, as customer data and data about performed works, worktimes, and distances to other systems. This data is vital for automatic invoicing systems. This generates relevant savings of administrative costs for you.
Reporting functions
Reporting can be necessary for different legal requirements. In some countries, subsidies for plants will only be granted, if periodic reports about the operation of the plant are provided. Also operator models like Public Private Partnership (PPP) mostly require reporting. Reporting can also help you to analyze processes and products by means of statistical approaches like SPC.
Automatic service-trip planning & optimization
According to planned service dates, incoming alarm messages, and average times for regular services and troubleshooting, the Aquavisor® telemetry system can be extended on request to suggest or to optimize service trips. You can save administrative costs and use the shift time of your servicemen to full potential.
Which Bonnel Control Units are compatible with the Aquavisor server-based telemetry system?

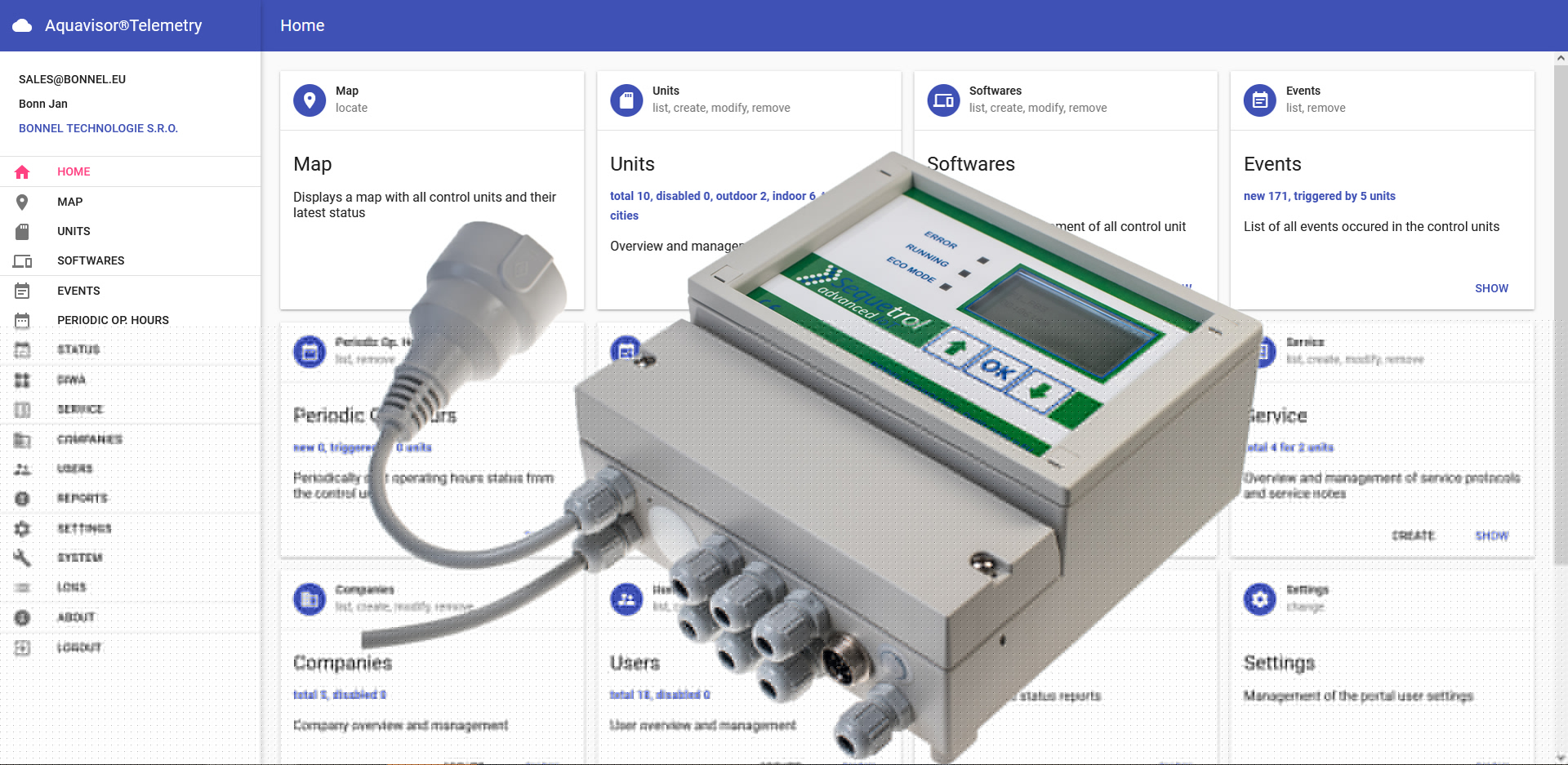

The IoT controller range (Sequetrol® IoT and BonBloc® IoT) are compatible with the system.
Does the Aquavisor server-based telemetry system allow remote monitoring and remote control?
Yes, it allows full remote control of the compatible Control Units.
Which communication technology and operating system does the Aquavisor server-based telemetry use?
The system requiers TCP/IP6 (“mobile data”, “internet”) and a web browser.
Can I use the App if some Control Units are not connected to 2/4G (internet)?
Yes. Service organization and the maintaining of the plant and customer database are possible.
Costs and Updates
The costs are a monthly fee (SaaS, Software as a Service). Regular Updates are provided.
