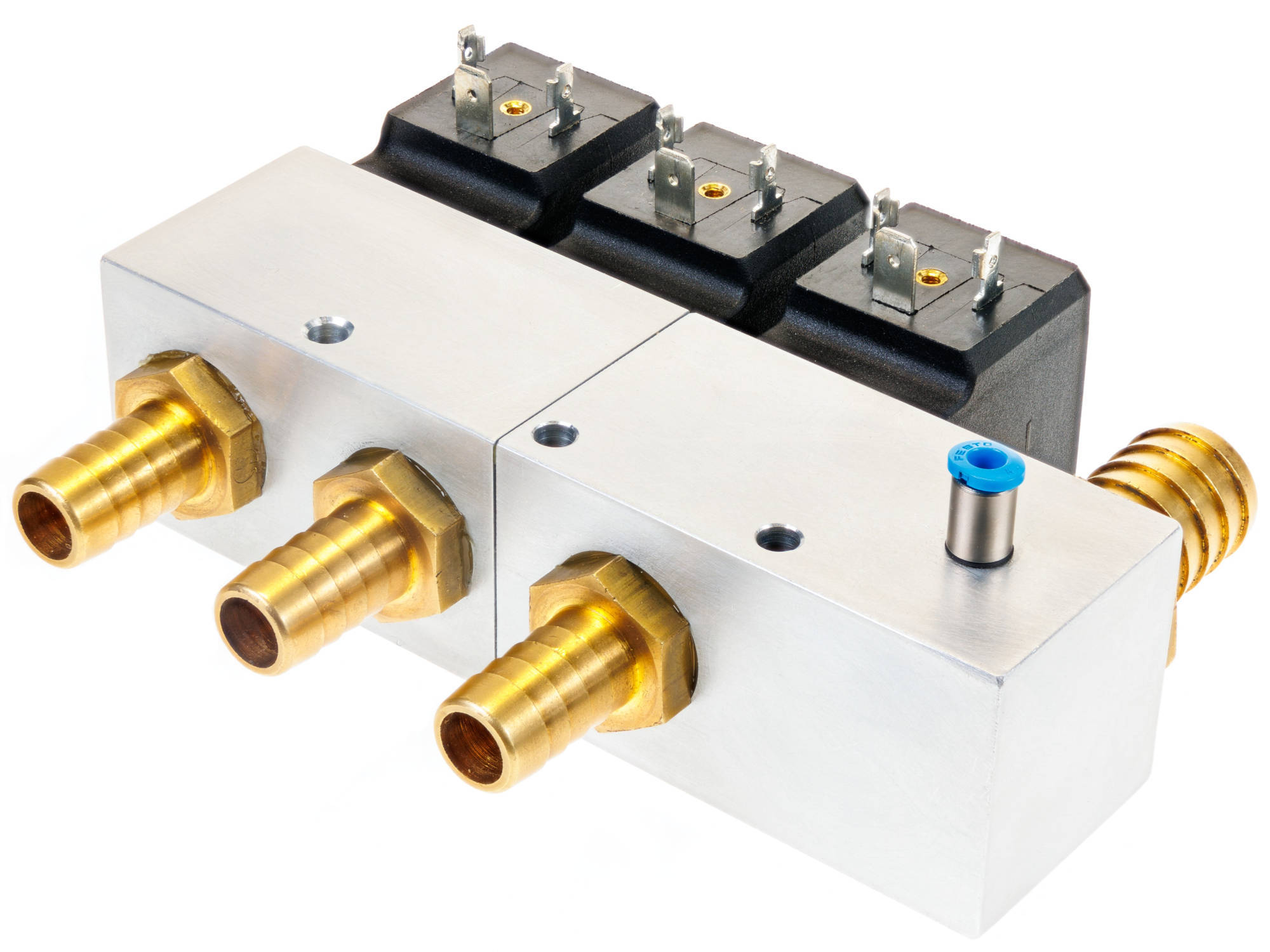

Solenoid Valve Unit
The Solenoid Valve is a valve, operated by a built-in actuator in a form of an electrical coil (or solenoid) and a plunger. Solenoid valve manifolds were designed for decentralized Sewage Treatment plants.
Details of Solenoid Valve Units
BONNELs Solenoid Valve Units can be used with Sequetrol® Control Units. They are suitable for bigger plants or side channel blowers. BONNEL offers versions with 1 up to 4 normally open valves. Multiple solenoid valves are placed together on a manifold. To connect the valves to the Sequetrol® Control Units, it is necessary to use a GDM connector and wires.
Technical Data Solenoid Valve Unit
| Attribute | Values |
|---|---|
| Number of valve outlets | 1-4 possible |
| Input | G ¾” or ¾” hose fitting |
| Outputs | G ½“ or ½” hose fitting or ¾” hose fitting |
| Sealing material | EPDM |
| Working pressure | 0-0,4bar |
| Ingress Protection | Ingress Protection |
| Ambient Temperature | -20°C to +60°C |
| Supply voltage | AC 230V 50Hz |
| Power Consumption per valve | 10W |
| Extra | 10W |
